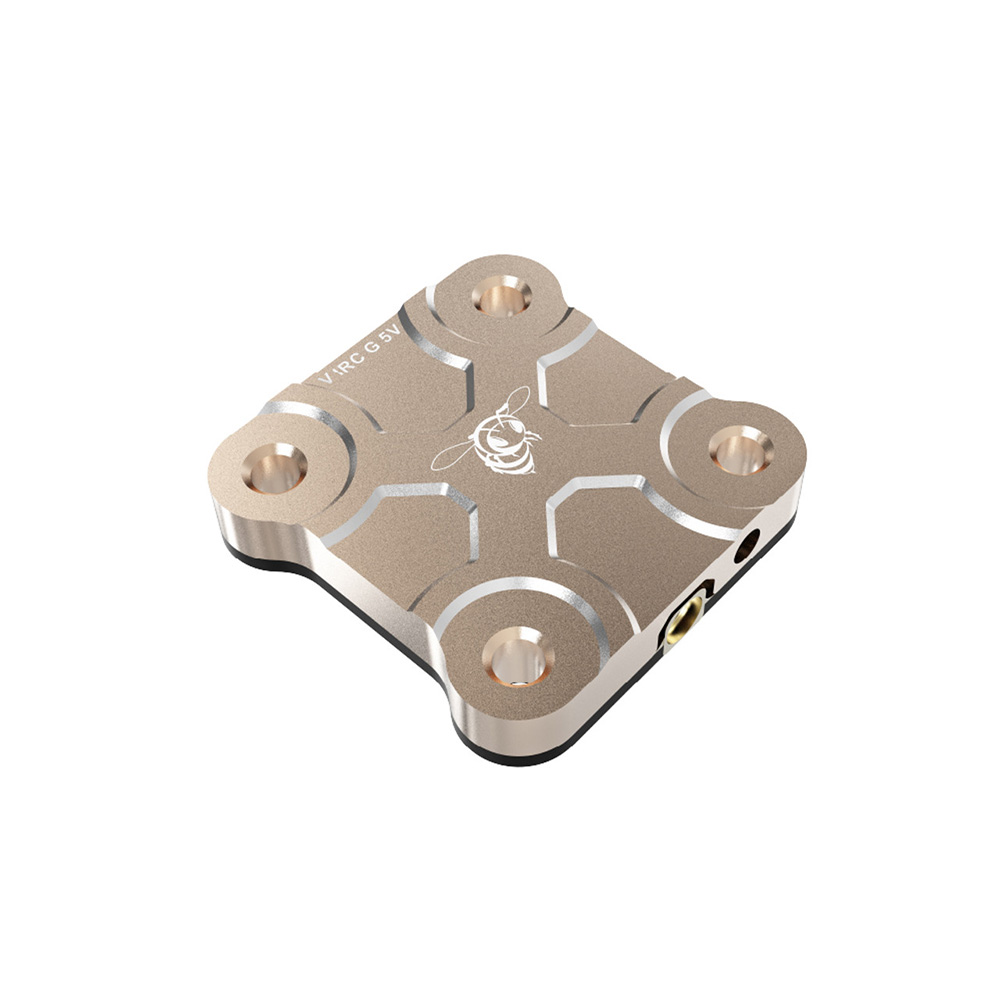

BetaFPV A02 25-800mW 5.8G VTX
LKR 17,500.00
JST socket and ————
pad connection supported
pad connection supported
Support IRC Tramp Protocol
TX800 supports the IRC TRAMP protocol and the modification of video transmission
parameters through the remote control,Including frequency, working power and so on.
If your flight controller supports Bluetooth or WiFi,You can also modify the video
transmission parameters through the SpeedyBee App.
parameters through the remote control,Including frequency, working power and so on.
If your flight controller supports Bluetooth or WiFi,You can also modify the video
transmission parameters through the SpeedyBee App.
For BetaFlight flight controller firmware above BetaFlight 4.1.0,
you need upload a VTX Table to the flight controller before using
the remote control to modify the video transmitter parameters
normally.
you need upload a VTX Table to the flight controller before using
the remote control to modify the video transmitter parameters
normally.
download SpeedyBee-TX800(USA).json
download SpeedyBee-TX800(EU).json
For the use of the video transmitter table, please refer to this article
“How to Setup Betaflight VTX Table – SmartAudio Tramp VTX Control”
by Oscar Liang.
Pit Mode Support
When you are flying with other pilots in the same place,
Pit Mode helps you to power the drone more calmly without disturbing others.
Pit Mode helps you to power the drone more calmly without disturbing others.
Package
1 X TX800
1 X MMCX antenna
1 X MMCX to SMA Cable
1 X 1.0mm 4pin Cable
1 X MMCX antenna
1 X MMCX to SMA Cable
1 X 1.0mm 4pin Cable
Specifications
| Frequency Channel | 5.8GHz 48CH |
| Output Power | PIT/25mW/200mW/400mW/800mW |
| Working Current | 5V@250~750mA |
| Voltage out | 5V@max 250mA |
| Voltage in | 3.7-5V |
| Video input impedance | 75 Ohm |
| Antenna Connector | MMCX |
| Weight | 5.6g (without antenna) |
| PCB Size | 28mm*28mm@20*20 |
| Mounting holes | M4 holes on the PCB; M3 holes on the metal heat sink |
