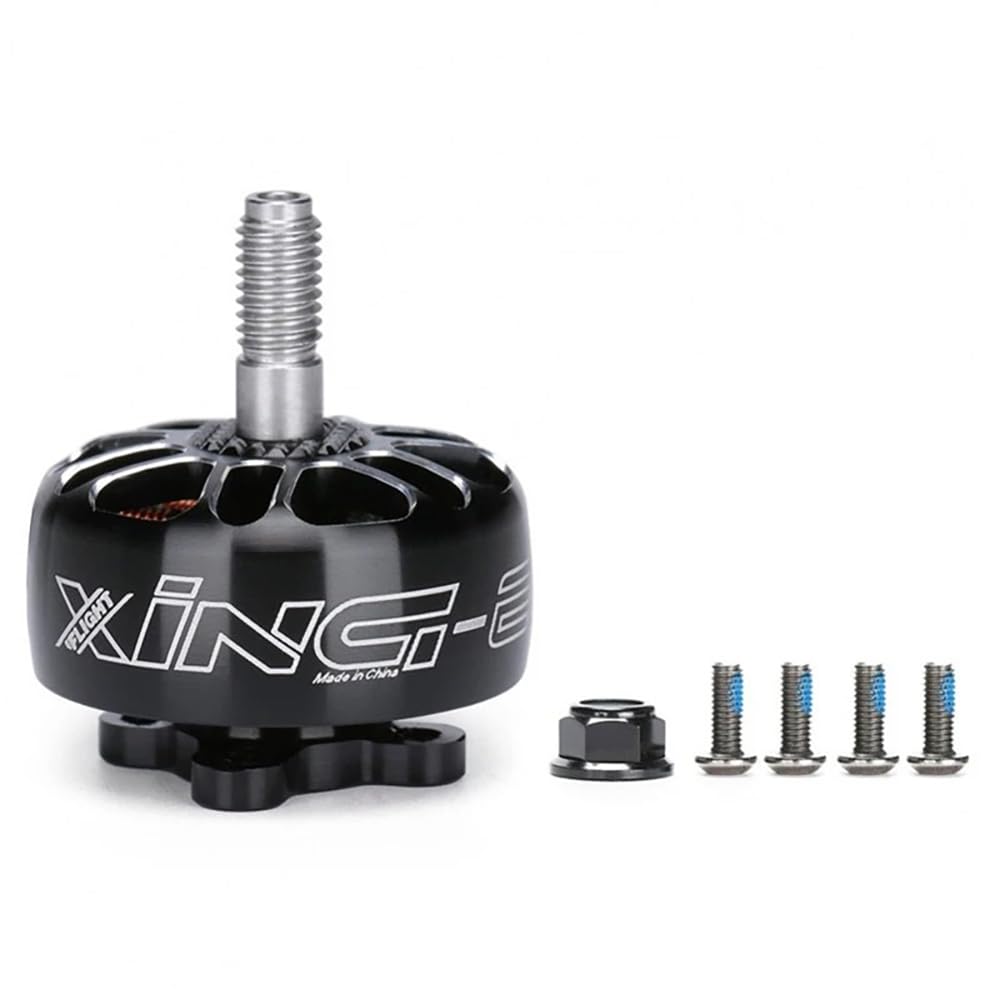

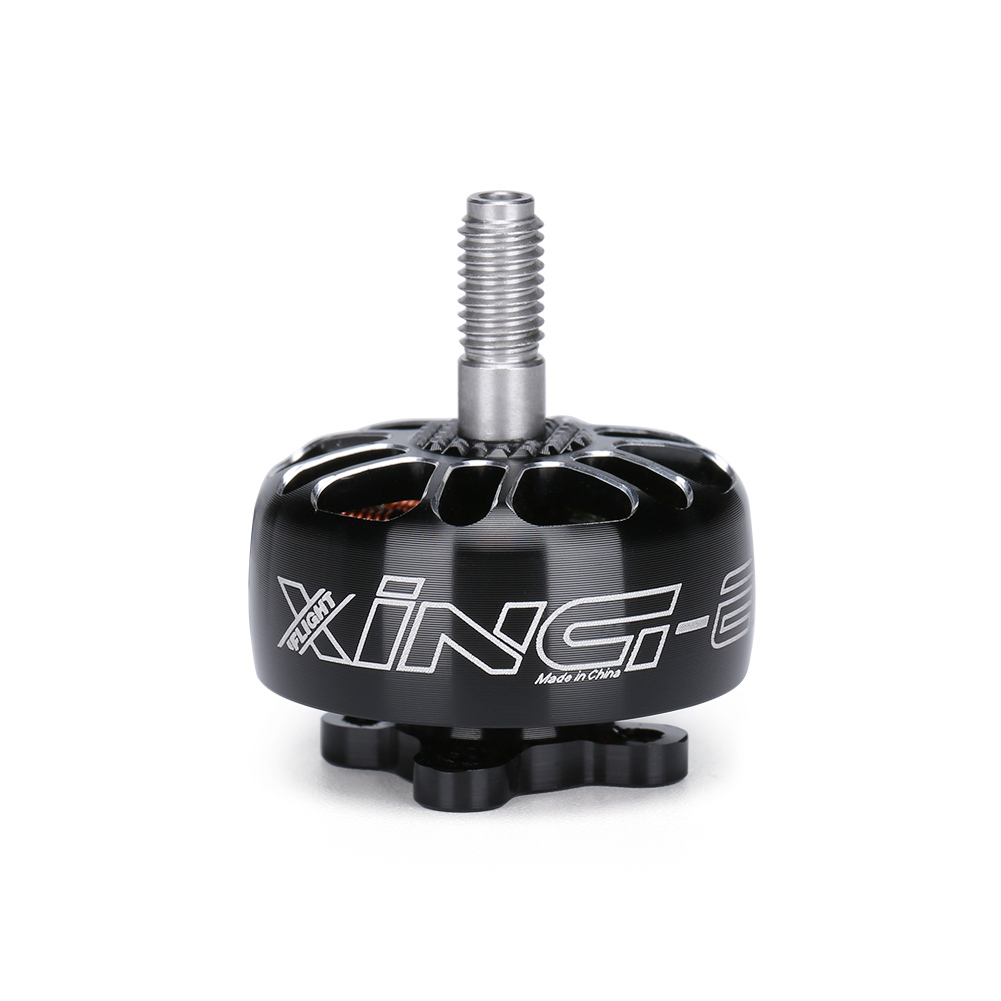

iFlight XING-E Pro 2207 1800KV – 2750KV

Item: IFlight XING Pro 2207 1800KV / 2450KV / 2750KV Brushless Motor

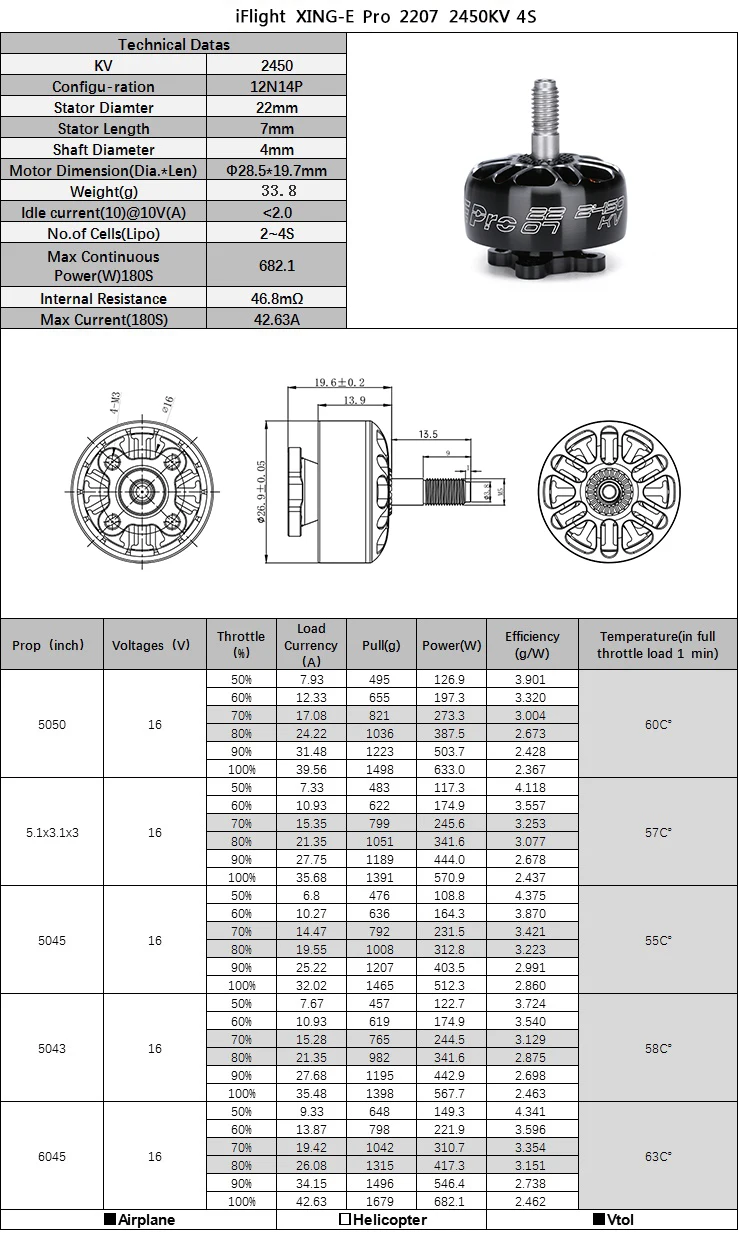

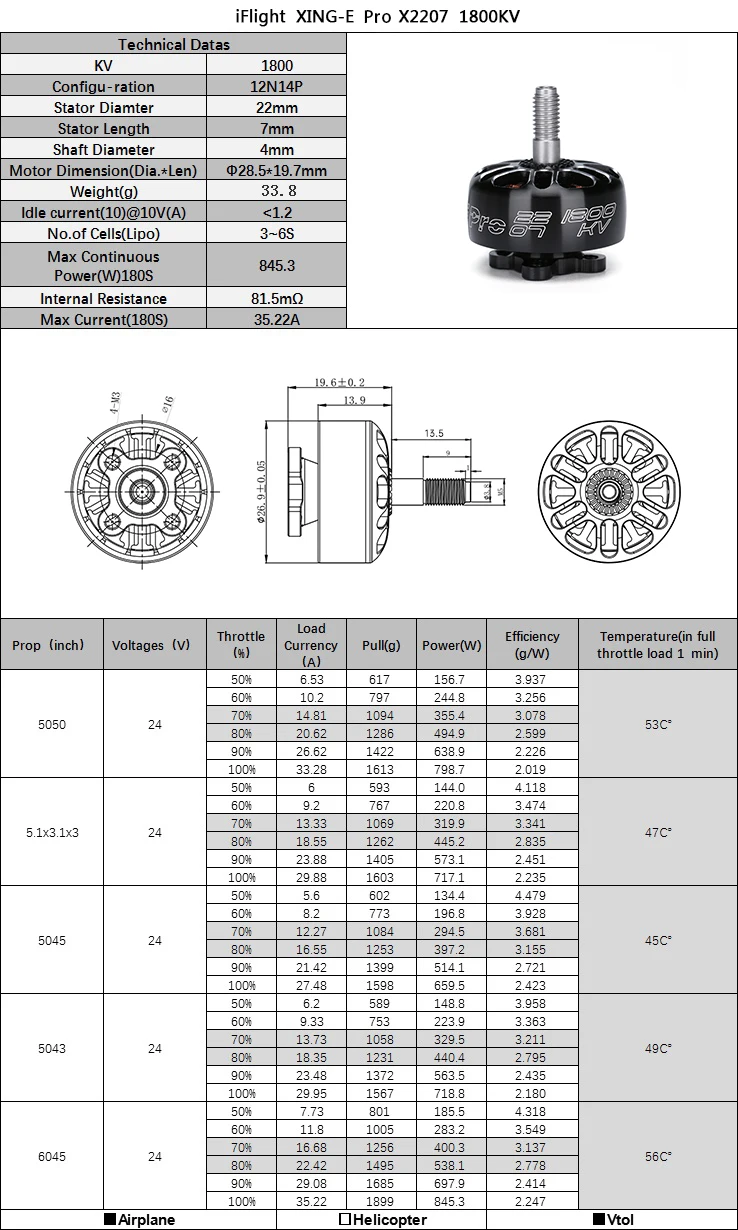

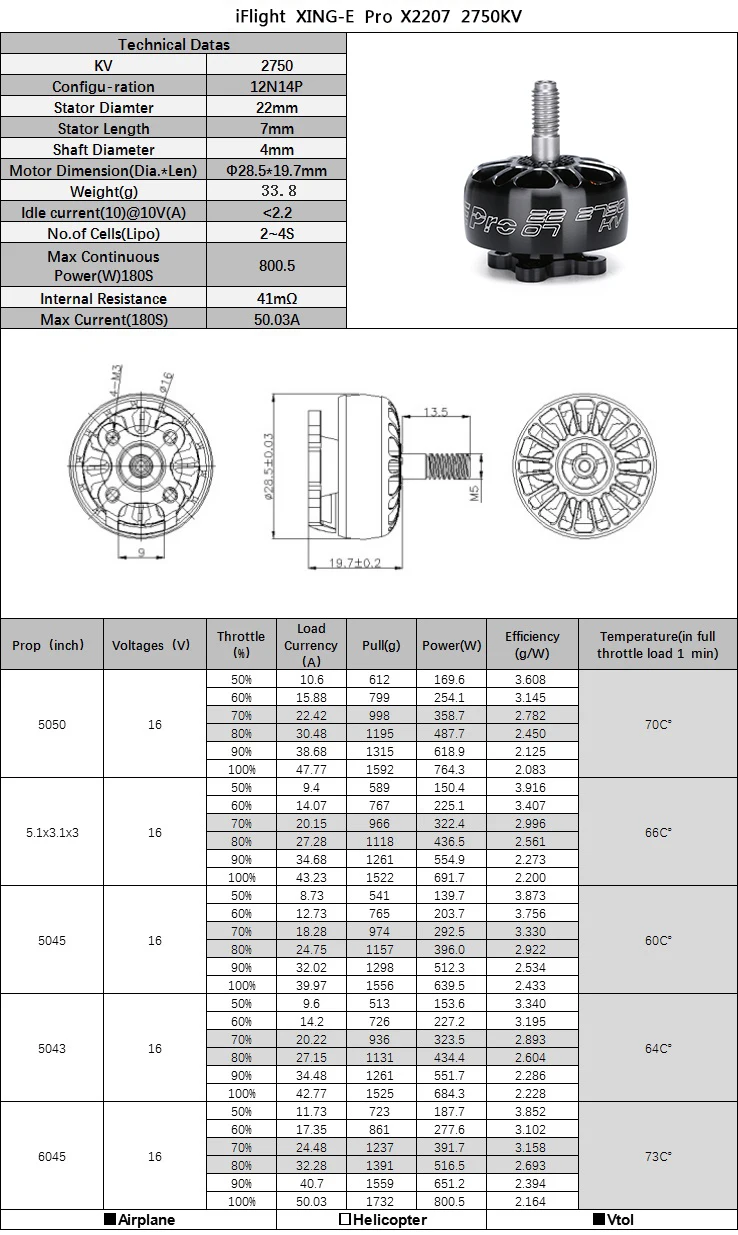

Parameters:
Brand: iFlight
Model: XING-E Pro 2207
Item Name: Brushless Motor 2207
KV: 1800KV / 2450KV / 2750KV (optional)
Version: CW Screw thread
Input voltage:
3-6S @ 1800KV;
2-4S @ 2450KV / 2750KV
Configuration: 12N14P
Stator diameter: 22mm
Stator length: 7mm
Shaft diameter: 5mm
Motor Dimensions: 28.5×19.7mm

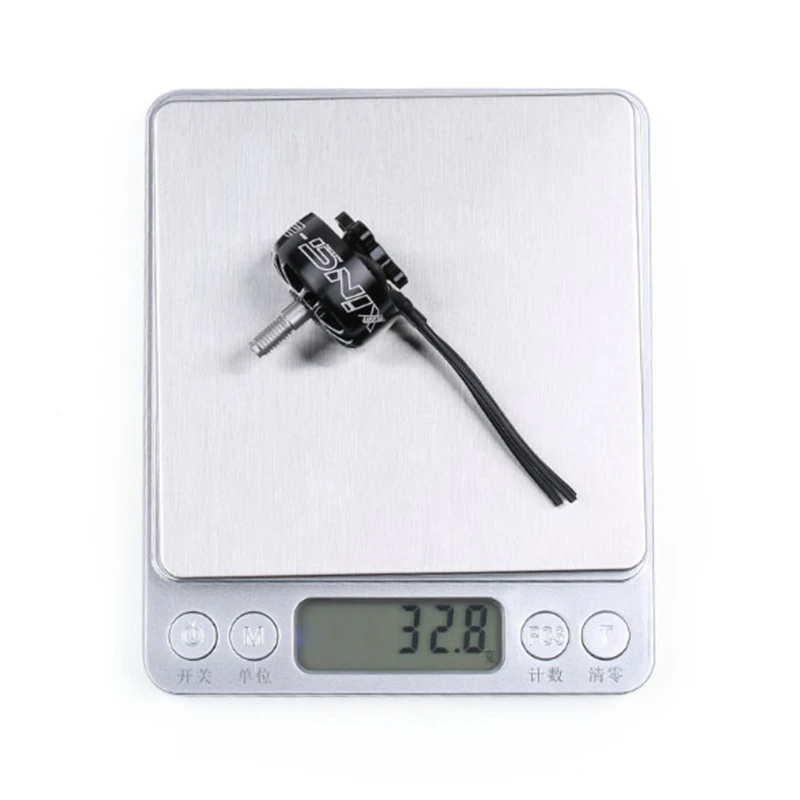

Weight: 33.8g
Idle current (10) to 10V:
less than 1.2A (1800KV);
Less than 2.0A (2450KV);
Less than 2.2A (2750KV)
With max. Power (180S):
845.3W @ 1800KV;
682.1 W @ 2450KV;
800.5W @ 2750KV
Internal resistance:
81.5mΩ @ 1800KV;
46.8mΩ @ 2450KV;
41mΩ @ 2750KV
Maximum current (180S):
35.22A @ 1800KV;
42.63A @ 2450KV;
50.03A @ 2750KV
Features:

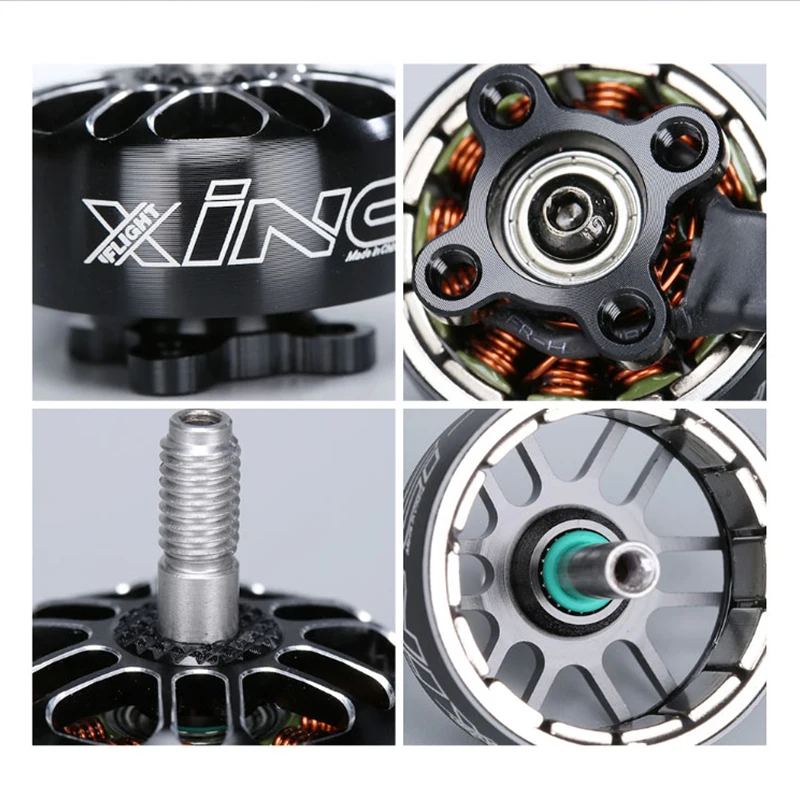

4mm high strength steel shaft

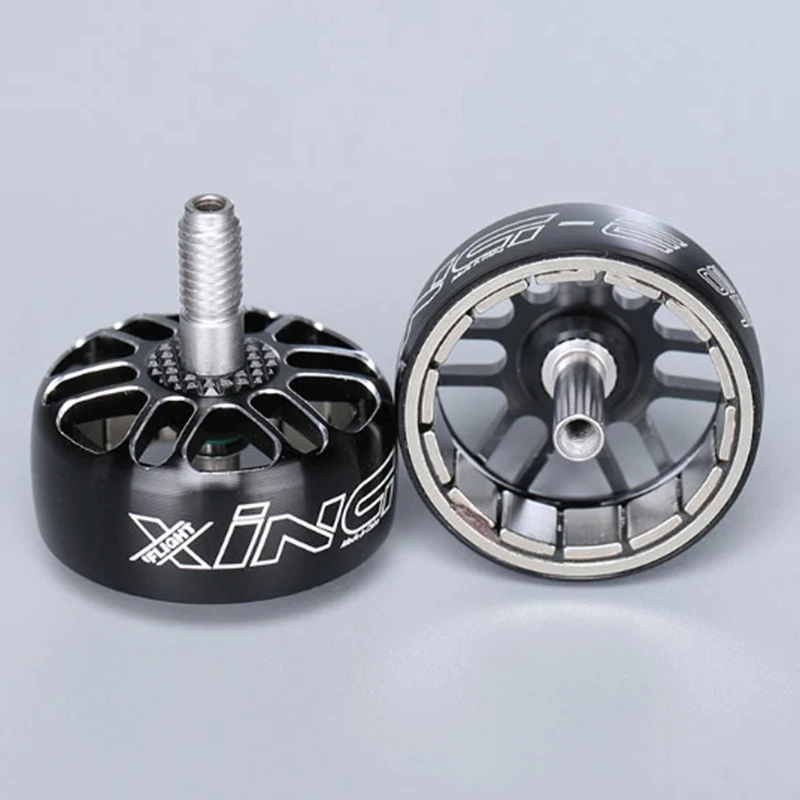

N52H high temperature magnets, NSK bearings
16x16mm hole pattern

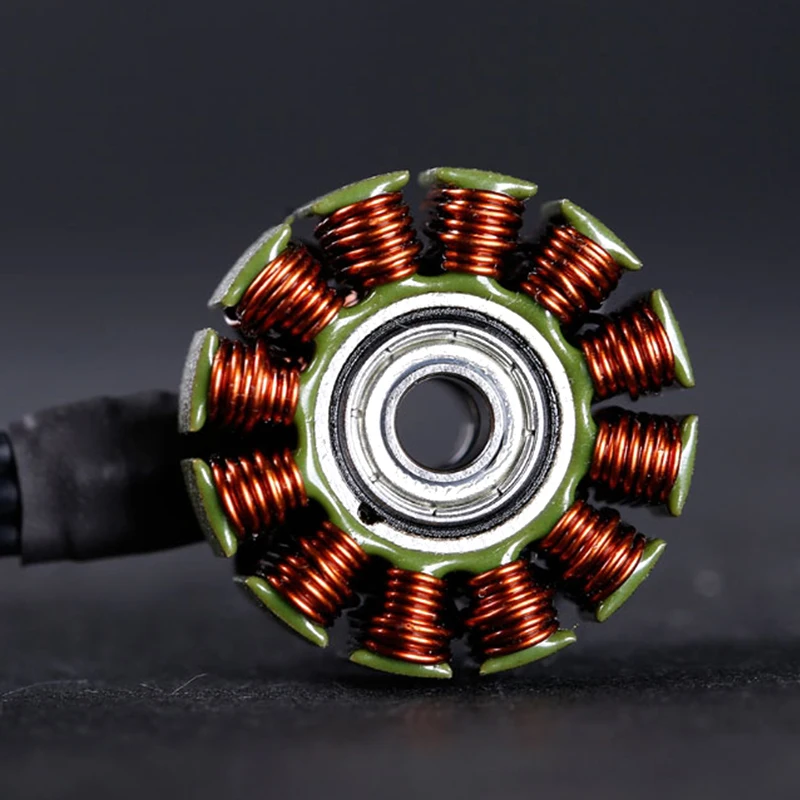

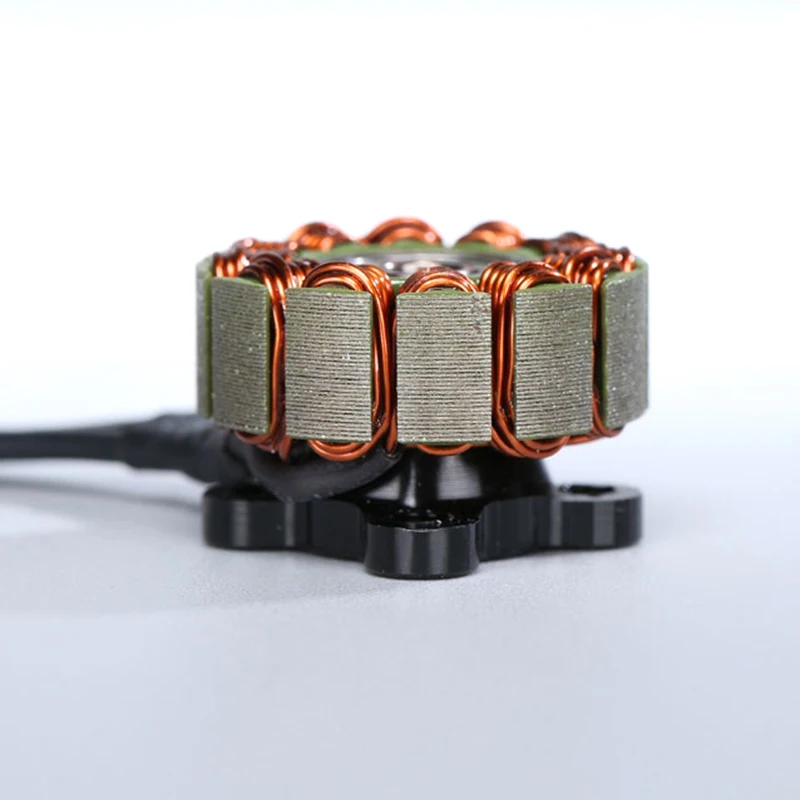

Single Strand Copper Coil
Hex Bolt Shaft Set Screw

XING-E series are very strong and powerful FPV motors for FPV racing, a great choice with known XING performance. It focuses on quality, affordable XING-E Series engines that are strong and durable.

This 2207 size motor features a 4mm high strength steel hollow shaft, single strand wound for performance, M3 shaft screw and larger 9x4x4mm NSK bearings.

• Package Included:
• 1PC XING-E Pro 2207 1800kv
  or 4PCS XING-E Pro 2207 1800kv
  or 1PC XING-E Pro 2207 2450kv
  or 4PCS XING-E Pro 2207 2450kv
  or 1PC XING-E Pro 2207 2750kv
  or 4PCS XING-E Pro 2207 2750kv
