Features:

1. Brushless ESC: Hobbywing Skywalker RC ESC Brushless 40A/40A V2 are original genuine products to ensure the first-class quality and high reliability of the electric regulator.

2. Excellent Performance RC ESC: The speed controller has strong resistance to current. Throttle stroke can be set, compatible with various remote controls. With smooth, delicate speed control feel, first-class linear speed regulation.The maximum speed can reach 210000 RPM (2-pole motor), 70000 RPM (6-pole motor) and 35000 RPM (12 pole motor).

3. Protection Function: With input voltage abnormal protection, battery low voltage protection, overheating protection, throttle signal loss protection and other multiple protection functions.

4. Three Start Modes: Normal start, soft start and super soft start, compatible with fixed wing aircraft and helicopter.

5.Excellent Service:Reach out regarding any questions, such as sizing, scale, or help with assembly. I want you to be happy with your purchase and satisfaction guaranteed. Please check your specific model’s manual for compatibility,or Contact us before auction.

Descriptions:

Hobbywing Skywalker Brushless ESC 40A/40A V2 for RC drone quadcopter airplanes helicopter are original genuine products to ensure the first-class quality and high reliability of the electric regulator.It has strong resistance to current. Throttle stroke can be set, compatible with various remote controls. With smooth, delicate speed control feel, first-class linear speed regulation.The maximum speed can reach 210000 RPM (2-pole motor), 70000 RPM (6-pole motor) and 35000 RPM (12 pole motor).

Specifications:

Brand: Hobbywing

High Voltage/Regular: Regular

Input Wires:

Red-14AWG-100mm*1

Black-14AWG-100mm*1

Output Wires: Black-14AWG-75mm*3

Output connectors: 3.5 gold connectors (female)

Transmitter: Supported

LED Program Card: Supported

LED Program Box: Not Supported

LCD Program Box: Not Supported

WIFI Modul: Not Supported

Firmware Upgrade: Not Supported

Size: 68*25*8mm

Weight: 39g

The difference between Skywalker-40A and Skywalker-40A-UBEC:

SKYWALKER 40A ESC BEC

PN=80060020

Cont./Peak Current: 40A/55A

Input: 2-3S lipo

BEC Output: 5V,3A(Linear mode)

Program Port: Program/Throttle Wire

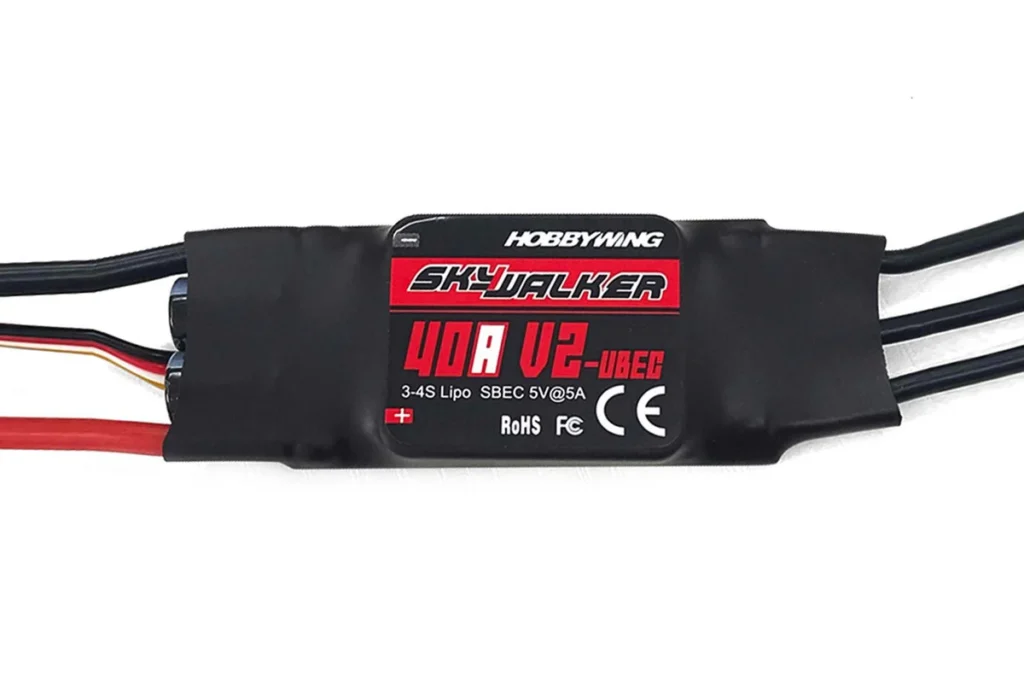

SKYWALKER 40A V2 ESC UBEC

PN=80060140

Cont./Peak Current: 40A/60A

Input: lipo 3-4S

BEC Output: 5V,5A(Switch Mode)

Program Port: Program Wire Firmware

Tips: UBEC provides greater output power, which is mainly used in two occasions: with heavy load; The input main voltage exceeds the allowable range of on-board BEC. It is only use when the output voltage of the electric regulator is high or cannot reach the voltage and current required of the servo.

50A V2
1 Specification
1.1 Output: Continuous 50A, Burst 65A up to 10 seconds.
1.2 Input Voltage: 2-4S Lipo, 5-12 cells NiMH.
1.3 BEC: 5A / 5V Switch mode BEC.
1.4 Refresh rate of the throttle signal: 50Hz to 432Hz.
1.5 Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.
(BLM = BrushLess Motor)
1.6 Size: 65mm*35mm*14mm.
1.7 Weight: 41g.

Hobbywing LED Program Card for FlyFun Fentium SkyWalker ESC

Features:
This program card is used to program Hobbywing’s following brushless airplane ESC:
FlyFun (also called “Fentium”)
SkyWalker

Note:
This program card is NOT suitable for Platinum series airplane ESC.
If the ESC hasn’t built-in BEC, you need to use an additional battery to supply the program card
