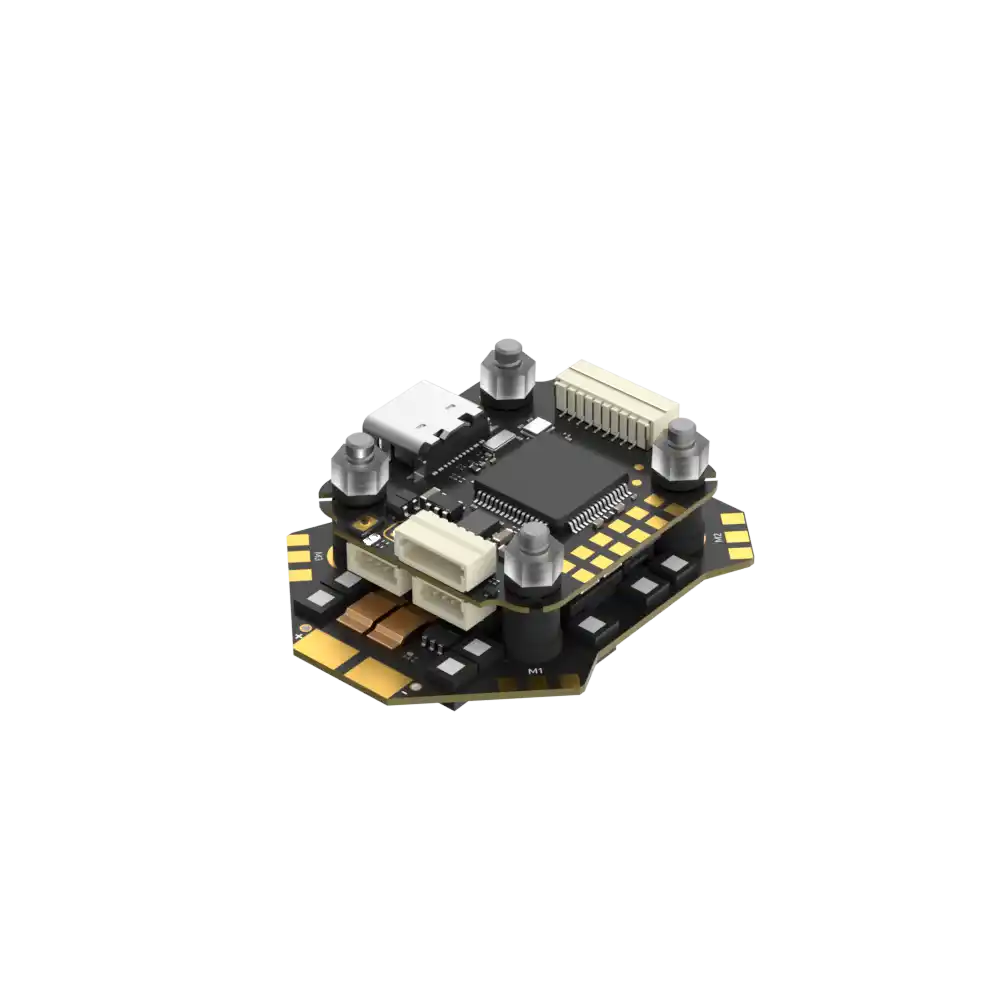

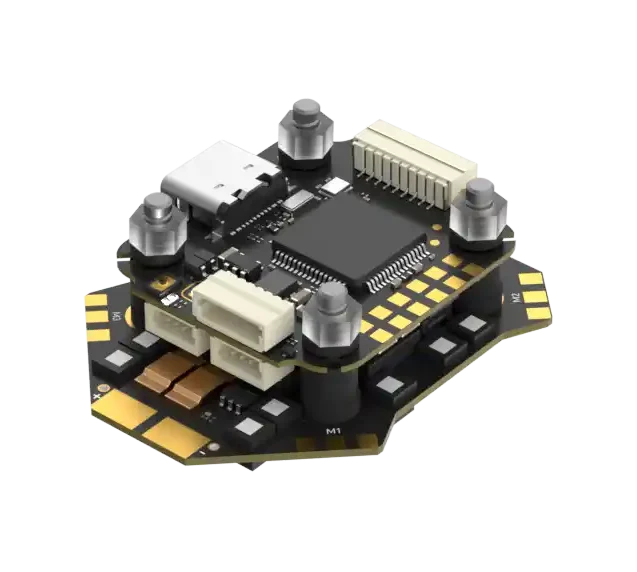

IFlight Borg Mini F7 Stack + 60A 4-IN-1 ESC

Description

• Introducing the All-New Borg Series – Power Meets Precision!

• The Borg Mini F7 Flight Controller is specifically designed for racing fpv, providing unmatched performance. Elevate your racing experience with the cutting-edge technology of the Borg Series!

FC Features

• Supports 4S to 8S battery inputs, offering versatility for various racing setups.

• Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off.

• FPC cables ensure secure connections with ESCs, while SH1.0 connectors enhance reliability across all other interfaces.

FC Specifications

• Input voltage: 4-8S; Support LIHV battery

• MCU: STM32F722RET6

• Gyro: ICM42688

• Barometer: SPA06-003

• OSD Chip: AT7456E（LGA）

• Flash: 32MB (Blackbox flash)

• UARTS: 6

• Motor outputs: 4

• I2C serial: Not supported

• VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero

• LED controller: Yes

• Beeper pad: Yes

• Betaflight Firmware target: IFLIGHT_BLITZ_F722

• INAV Firmware target: IFLIGHT_BLITZ_F722

• Mount pattern: 20*20φ4

• Dimensions: 27*30.6mm±1

• Weight: 6.9g±1

• BEC: 5V 2.5A, 12V 2A (12V with VTX switch)

Wiring Suggestion

• UART 1 for VTX HD / Analog

• UART 2 for Receiver

• UART 3 for GPS or other sensors that require a serial port

• UART 4 for GPS

• UART 5 for GPS or other sensors that require a serial port

• UART 6 for ESC Telemet

ESC Specifications

• Product Name: Borg Mini 60 ESC

• Input Voltage: 2-6S; Support LIHV battery

• Max. Continuous Current: 60A

• Max. Burst Current: 65A (10s)

• MCU: STM32G071N

• Driver: FD6288

• Firmware: BL32 (32bit ESC)

• Target: IFLIGHT_BLITZ_G3 32.9

• Current Sensor: Yes

• BEC: N/A

• Telemetry: Supported

• Bidirectional DSHOT: Supported

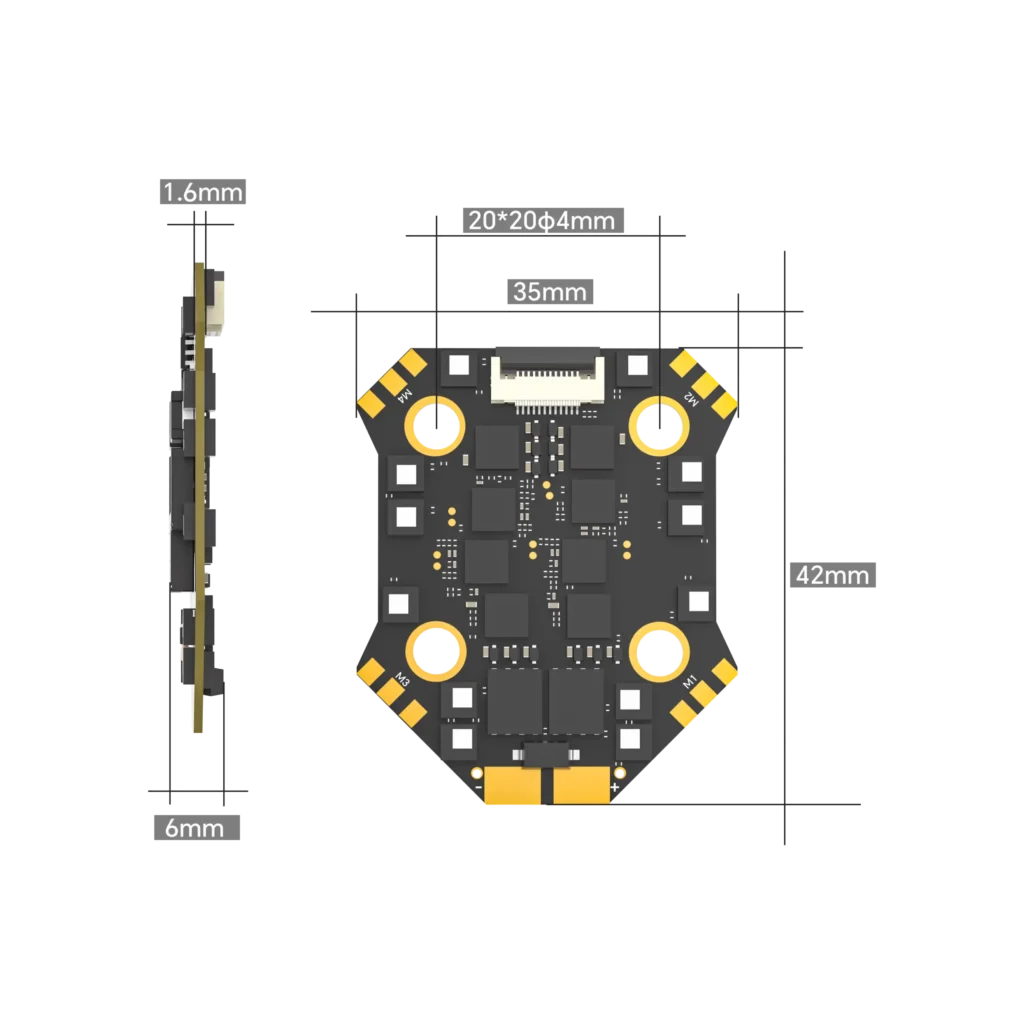

• Dimensions: 42*35mm±1

• Mounting Holes: 20 x20 mm/Φ4mm

• Weight: 10.1g±1

• Protocol: Supports DShot150/300/600、MultiShot、OneShot etc.

Packing List

• 1 x Borg Mini F7 Flight Controller

• 1 x Borg Mini 60 ESC

• 1 x Cable set

• 5 x silicon grommets
