Radiolink F722 Flight Controller

F722 Main Features:

• Main Processor: STM32F722RET6
• Gyro: ICM42688
• 128MB Blackbox
• Barometer: SPL06-001
• Integrated OSD Module
• Firmware Support: Betaflight and INAV
• Mission Planner Support: Betaflight and INAV

Support ESC Information Telemetry, support two-way DShot, OneShot, and PWM signals.

OSD Module Integrated

F722 can graphically display OSD information such as flight mode, distance, GPS sats, longitude and latitude, home direction, GPS speed, and battery voltage. The pilot can get more information during the FPV (first-person view) flight.

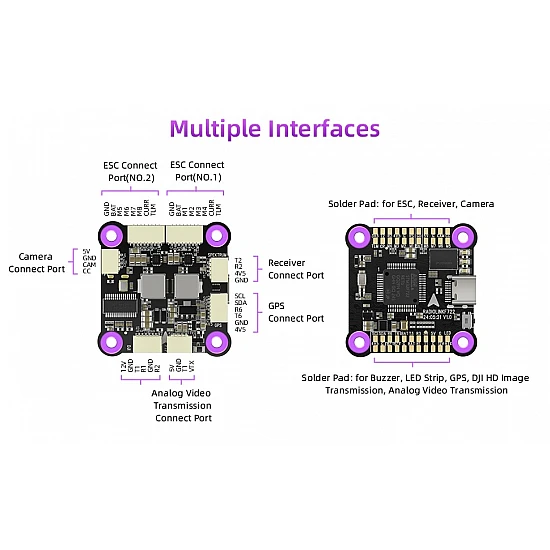

Multiple Interfaces

Supports up to 8 channels output and is adaptable to a 2-8 axis multi-rotor including X8 models. A combination of socket interface and solder pad makes it more convenient to connect external devices.

Cost-effective Solution

F722 works with: Radiolink Transmitter T16D/16 channels receiver R16F/TS100 GPS/ DJI/CADDX high-definition digital image transmission/HD Goggles/ELRS long-range module.

*Almost all the parts of the RC drone you need we can offer, realizing the super adaptability of various cost-effective solutions such as high-speed aerial photography and cinematography solutions.

Unique Automation Software Testing System

With the independent research and development of multiple unique flight control systems, we have designed a full-featured automation software testing system from sensor to connection ports and interface.

FlyColor 55A 4 in 1 ESC

FLYCOLOR 55A 4 in 1 ESC Specification

Color: Radiolink F722 Only

Packing List
